Melt Pumps for PEF Biaxially Oriented Film Extrusion Lines

As the global "plastic restriction" movement gains momentum, poly(ethylene furanoate) (PEF) has emerged as a game-changing bio-based material, hailed as the "green upgrade" of PET. With exceptional barrier properties, mechanical strength, and renewable sourcing, PEF biaxially oriented (BOPEF) films are poised to dominate high-end packaging, textiles, and industrial applications. However, PEF’s unique processing challenges—high viscosity, shear sensitivity, and narrow processing window—have long plagued manufacturers, especially in biaxially oriented extrusion where precision is non-negotiable. Melt pumps have emerged as the ultimate solution, addressing core pain points and unlocking the full potential of PEF BOPEF production.

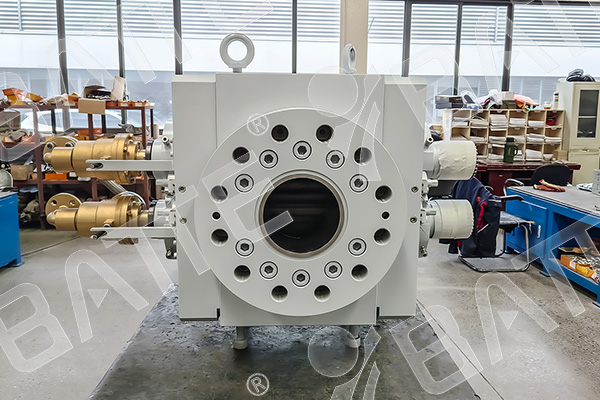

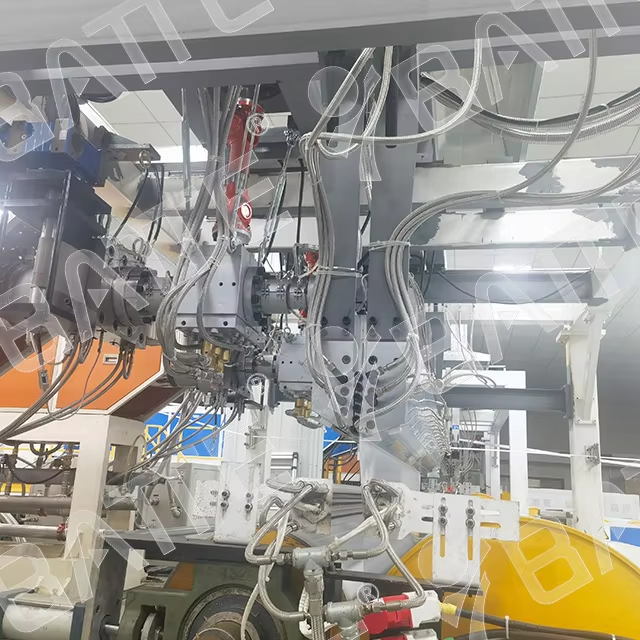

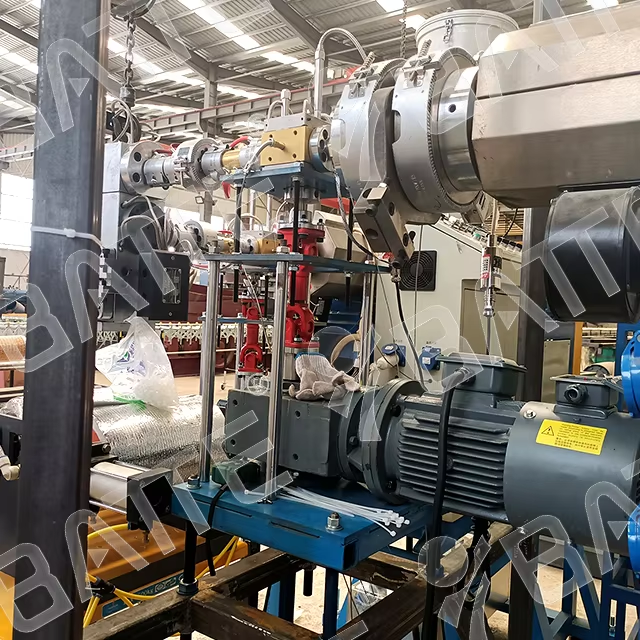

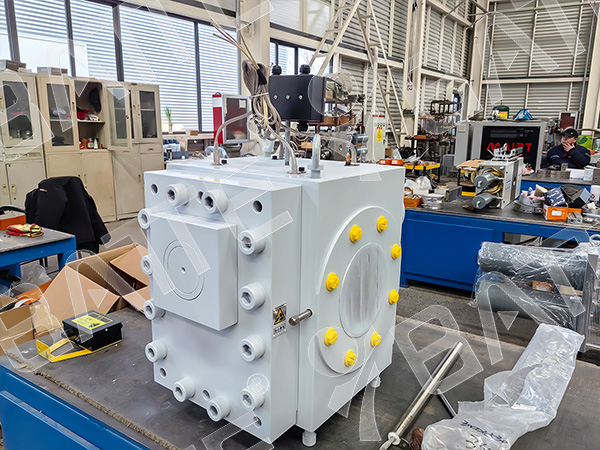

​ The biaxially oriented film (BOF) extrusion process places extremely high demands on consistency: the film must be uniformly stretched in both the longitudinal and transverse directions to achieve balanced mechanical and barrier properties. Traditional extrusion systems rely entirely on the extruder screw, but the screw struggles to handle the high melt viscosity of PEF (which can reach tens of thousands of Pa·s at processing temperatures of 240–260°C). Screw-driven conveyance inevitably leads to flow pulsations, pressure fluctuations, and uneven melt distribution—critical defects that severely compromise the quality of thin-wall films. A melt pump installed between the extruder and the die utilizes positive displacement technology to resolve this issue: two sets of precision-meshed gears rotate to provide a constant volumetric flow rate, thereby isolating the downstream process from upstream instability.

1. Stabilizing Thin-Wall PEF Film Production

​ Thin-wall PEF films (often with thickness tolerances below ±3%) require "hydrostatic-like" melt stability at the die . Even minor flow variations cause thickness unevenness, pinholes, or edge curling—defects that render films unsuitable for high-end applications. Melt pumps eliminate these issues by controlling flow fluctuations within ±1% . Their rigid construction and tight tolerances (achieved via precision machining of nitrided steel or stainless steel components) minimize internal leakage, ensuring consistent melt delivery to the T-die. This stability is critical for biaxial stretching: uniform cast sheets form the foundation for even molecular orientation, resulting in films with consistent thickness, enhanced tensile strength, and superior barrier performance against gases and moisture.

2. Safeguarding High-Speed Spinning and Stretching Quality

High-speed biaxial stretching is integral to BOPEF film production, as it enhances molecular alignment and optimizes material properties. However, PEF’s shear sensitivity makes it prone to flow instability at high speeds, leading to filament breakage, uneven denier, and surface defects. Melt pumps act as "precision metering devices," ensuring each spinning or stretching station receives identical melt flow . By decoupling the extruder from the die, the pump absorbs pressure spikes and flow variations caused by screw wear, feed rate changes, or viscosity fluctuations. This consistency not only reduces downtime from breakages but also improves process repeatability, ensuring batch-to-batch uniformity—a key requirement for industrial-scale production.

3. Protecting Sensitive PEF Materials and Reducing Degradation

PEF is thermally sensitive: prolonged exposure to high temperatures and shear forces during extrusion causes molecular degradation, leading to reduced intrinsic viscosity, discoloration, and compromised performance . Traditional systems exacerbate this by forcing the extruder screw to work harder to build pressure, extending melt residence time in the barrel. Melt pumps take over the primary pressure-building task, allowing the extruder to operate at lower backpressure and higher speeds. This shortens PEF’s thermal-mechanical history, minimizing shear-induced heating and degradation . Advanced melt pump designs, with optimized involute gear profiles and smooth flow channels, further reduce shear stress, preserving PEF’s molecular integrity and ensuring the final film retains its bio-based advantages.

Beyond solving core pain points, melt pumps deliver tangible operational benefits for PEF BOPEF lines. Energy efficiency improves by 10-20% as the extruder’s workload decreases , while material waste drops significantly—off-spec products caused by instability are virtually eliminated. Melt pumps also enhance process adaptability: they accommodate PEF’s viscosity variations and can be customized to match specific line capacities, from lab-scale trials to 10,000-ton annual production . Their compatibility with auxiliary systems (such as screen changers and dynamic mixers) creates a seamless melt handling workflow, filtering impurities and homogenizing temperature for even higher quality.​

When selecting a melt pump for PEF biaxially oriented film lines, key factors include pressure rating (0-35MPa to match BOPEF requirements), temperature resistance (180-220°C for PEF processing), and material compatibility (wear-resistant, corrosion-resistant alloys to handle acidic residues) . Partnering with a reputable manufacturer ensures customization to your line’s flow rate and process parameters, maximizing stability and longevity.

In conclusion, melt pumps are indispensable for PEF biaxially oriented film extrusion lines. By stabilizing thin-wall production, safeguarding high-speed stretching quality, and protecting sensitive PEF from degradation, they address the material’s unique challenges while boosting efficiency and reducing costs. As demand for sustainable PEF films grows, investing in a high-quality melt pump becomes a strategic decision—one that unlocks consistent, high-performance production and strengthens your competitive edge in the bio-based materials market. For manufacturers aiming to master PEF BOPEF extrusion, melt pumps are not just components—they are the cornerstone of success.
